ALIX 2-3 (3 ethernet / 1 miniPCI)


All prices are in AUD and include GST.


Base price: $350.00

In stock



Product Code

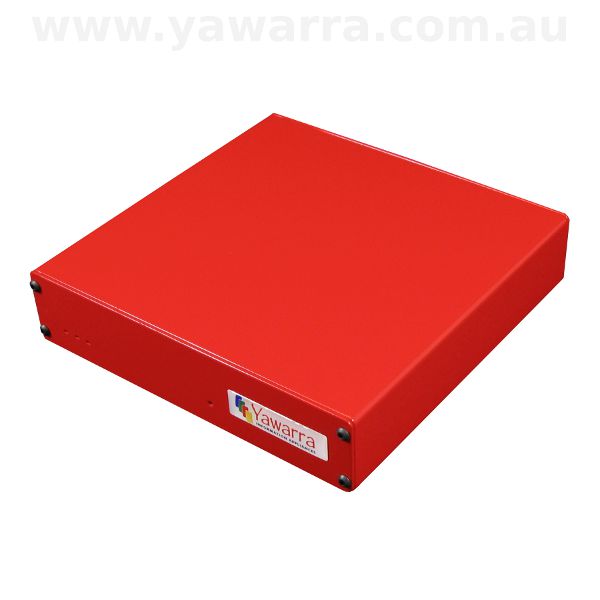

ALIX 2-3 red front view

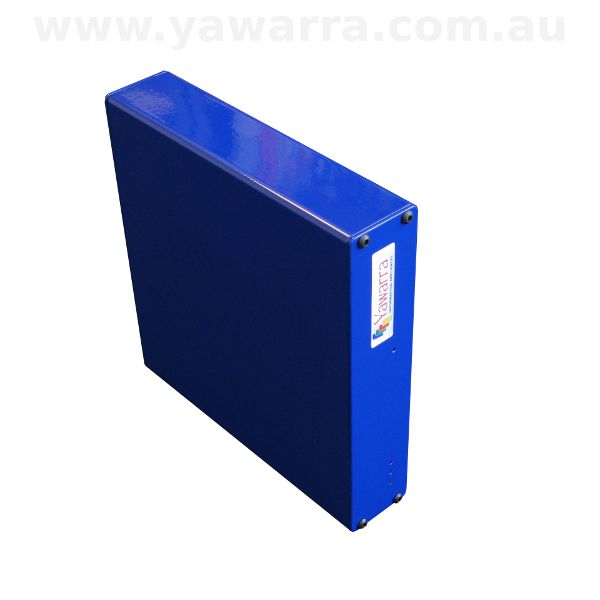

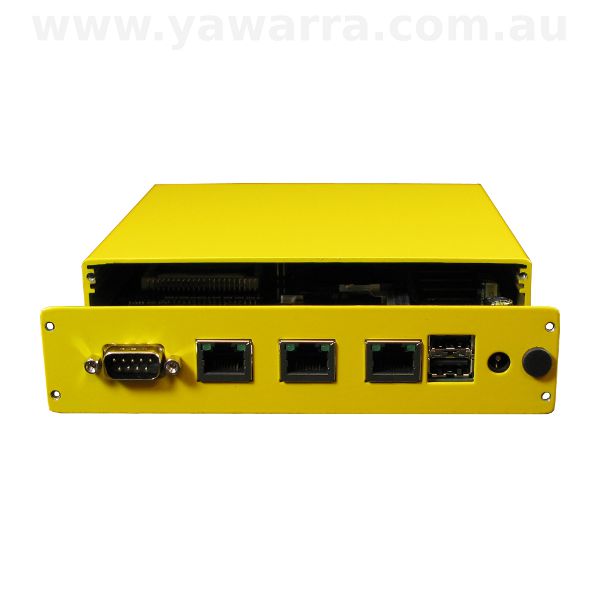

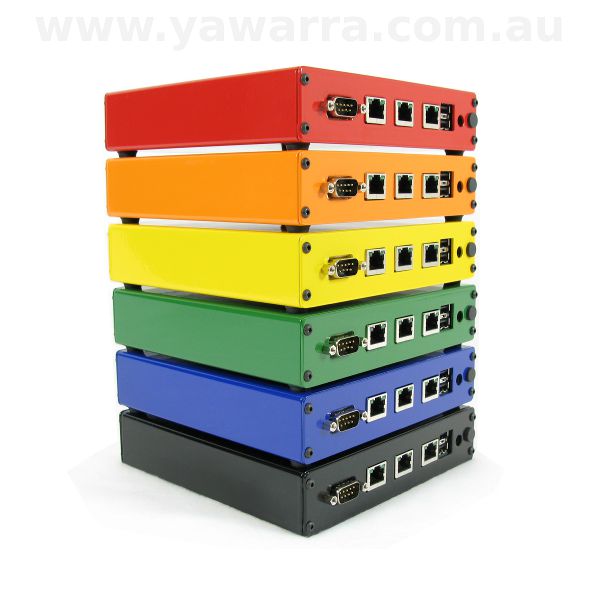

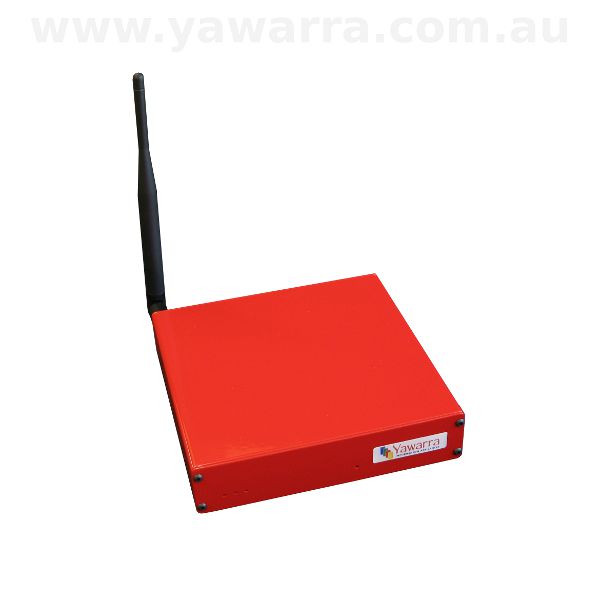

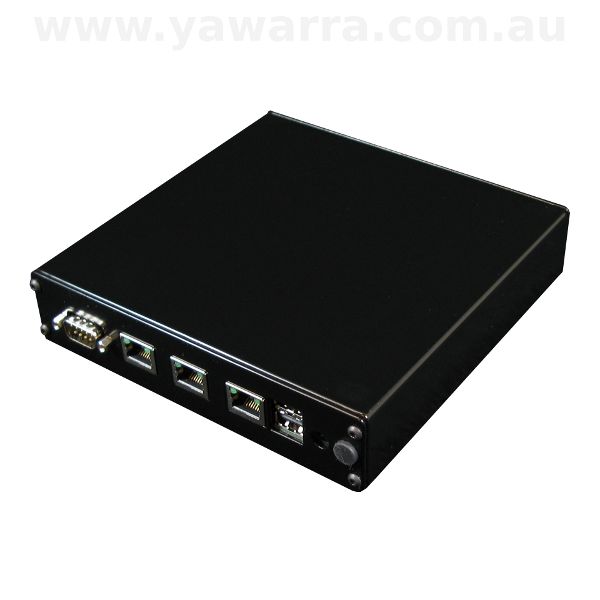

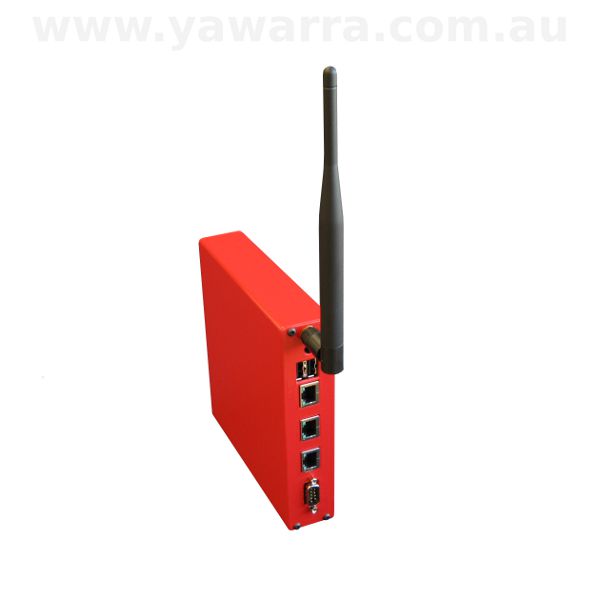

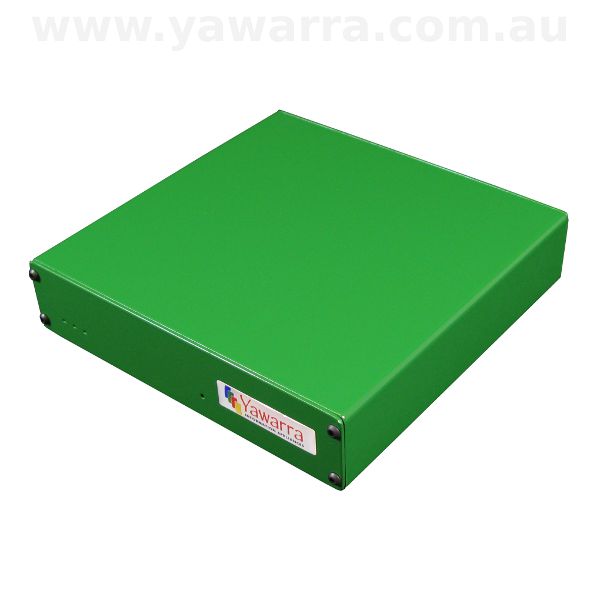

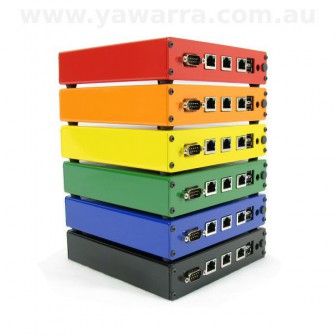

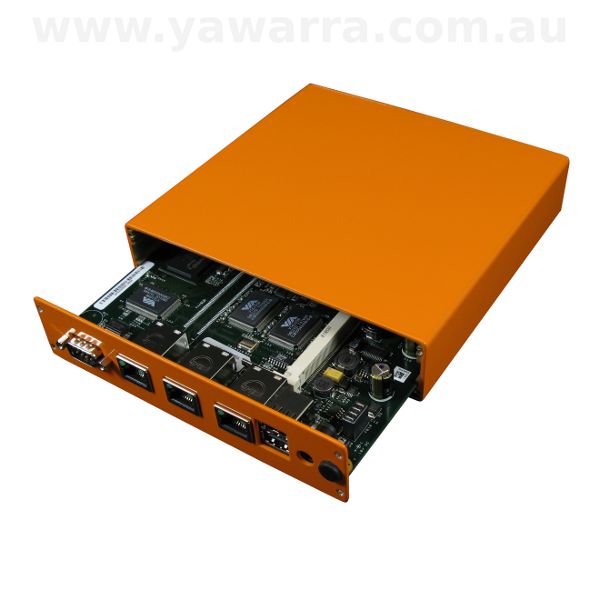

ALIX 2-3 black rear viewALIX 2-3 blue on edgeALIX 2-3 red with antennaALIX 2-3 green front viewALXI 2-3 orange board slidingALIX 2-3 yellow end slidingALIX 2-3 red on edge with antennaALIX 2-3 rainbow stackALIX 2-3 custom colours pink
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order
  • miniPCI wireless cards do not include a pigtail or antenna

Compact and silent, the ALIX 2-3 uses very little power, has no moving parts and is ultra-reliable, making it ideal for use as a dedicated network appliance. Available in a stylish case in a great range of colours, the ALIX 2-3 looks very smart and is equally at home on public display or tucked away in a corner.

The ALIX 2-3 comes with 1 mini-PCI slot and 3 ethernet ports, giving you the flexibility to add wireless if you want it, while also allowing you to have multiple internal networks, multiple internet providers or a DMZ.

The ALIX 2-3 includes a board and case, ready for you to add your choice of Compact Flash card, operating system, expansion cards, pigtail, antenna and power supply.


500 MHz AMD Geode LX800 CPU, 256 MB RAM


Compact Flash card or Microdrive


7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant)

Power consumption

Uses about 3 to 5W at 12V DC (excluding miniPCI cards)


3 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot (card not included), 1 serial (RS232) port (console), 2 USB 2.0 ports


Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface; real-time clock (RTC) battery


158W x 163D x 38H (mm)



Case colours

Powdercoated black, red, blue, green, orange, yellow


Ethernet, serial and USB to suit ALIX 2-3, D cutout to suit SMA pigtail, DC power jack


PC Engines (board) / Yawarra (case)


ALIX.2D-3 / ALIX.2D-13


C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (
