ALIX 2-2 (2 ethernet / 2 miniPCI)

Sold out

End of life

Availability

Information

Product Code
Category
Includes
Notes
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order
  • miniPCI wireless cards do not include a pigtail or antenna

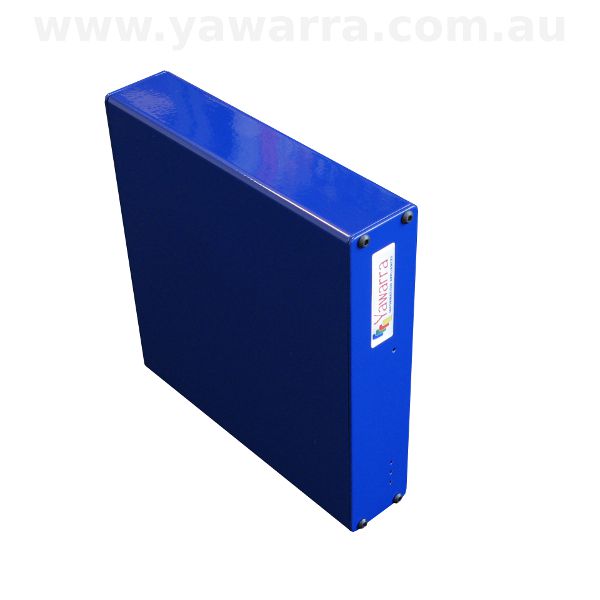

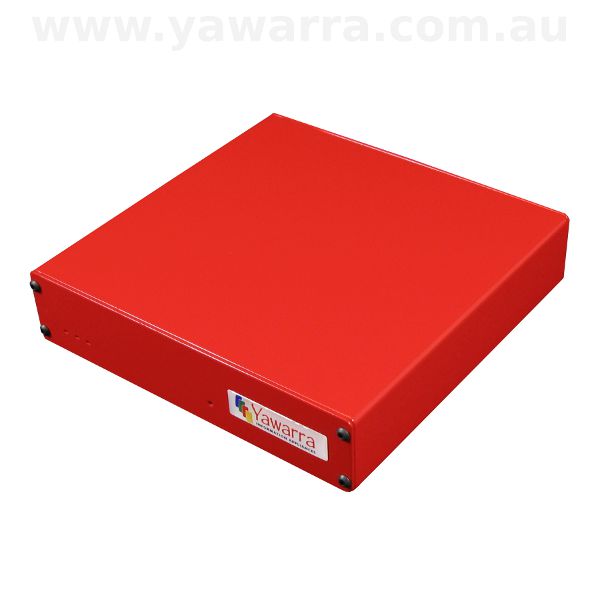

Compact and silent, the ALIX 2-2 uses very little power, has no moving parts and is ultra-reliable, making it ideal for use as a dedicated network appliance. Available in a stylish case in a great range of colours, the ALIX 2-2 looks very smart and is equally at home on public display or tucked away in a corner.

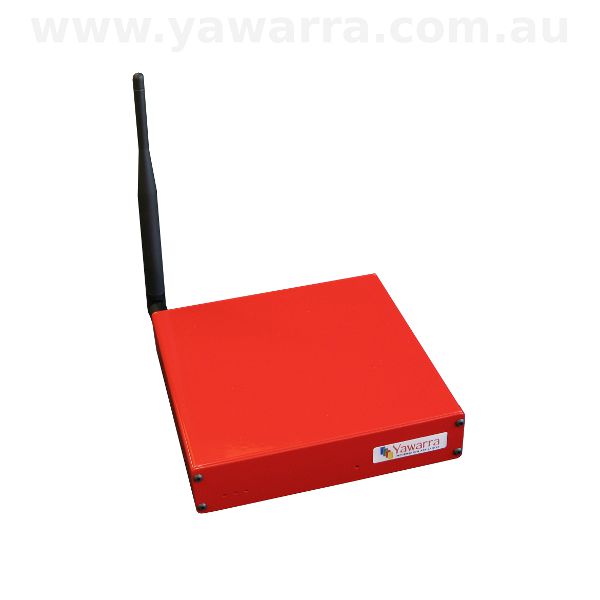

The ALIX 2-2 comes with 2 mini-PCI slots and 2 ethernet ports, giving you the flexibility to have multiple wireless connections, and is also suited to simplified networks that have just one internal and one external network port.

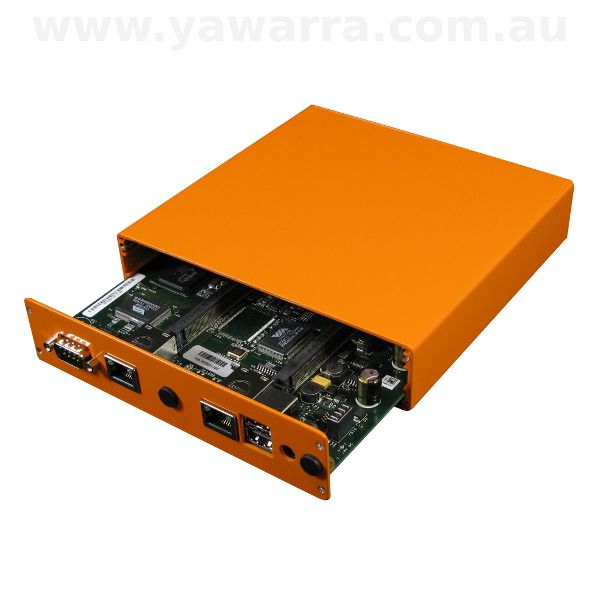

The ALIX 2-2 includes a board and case, ready for you to add your choice of Compact Flash card, operating system, expansion cards, pigtails, antennas, and power supply.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM

Storage

Compact Flash card or Microdrive

Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant)

Power consumption

Uses about 3 to 5W at 12V DC (excluding miniPCI cards)

Connectivity

2 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 2 miniPCI slots (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports

Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface (requires soldering)

Size

158W x 163D x 38H (mm)

Weight

530g

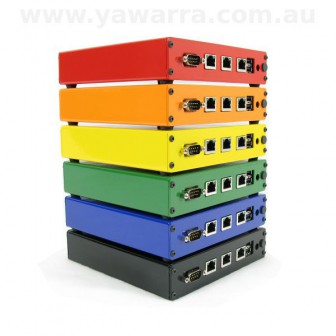

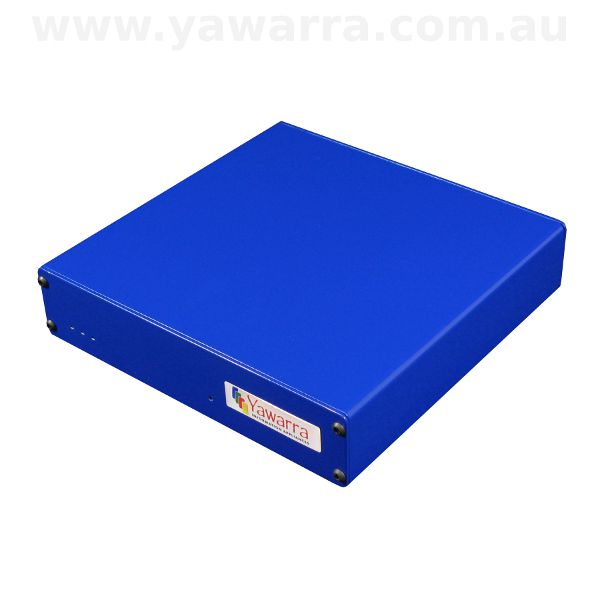

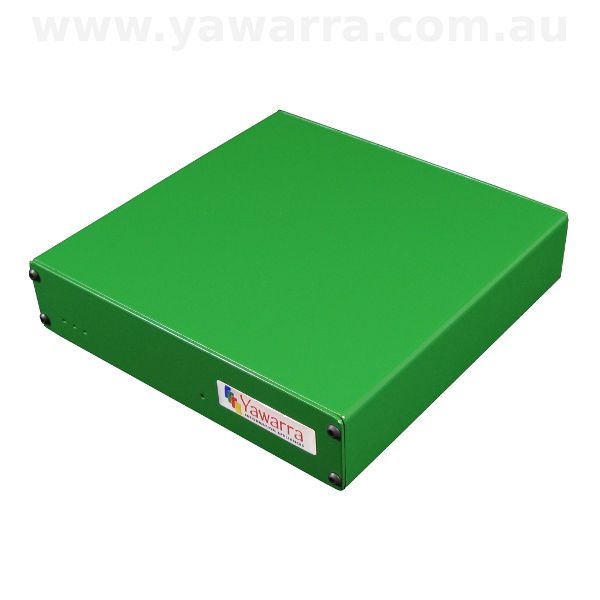

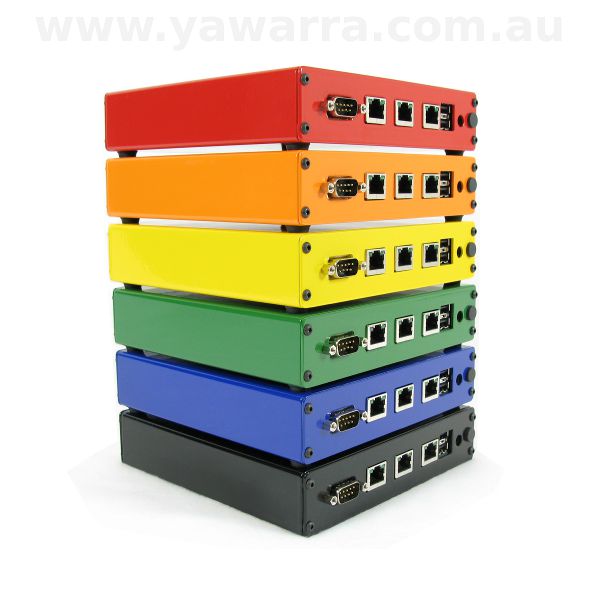

Case colours

Powdercoated black, red, blue, green, orange, yellow

Punchouts

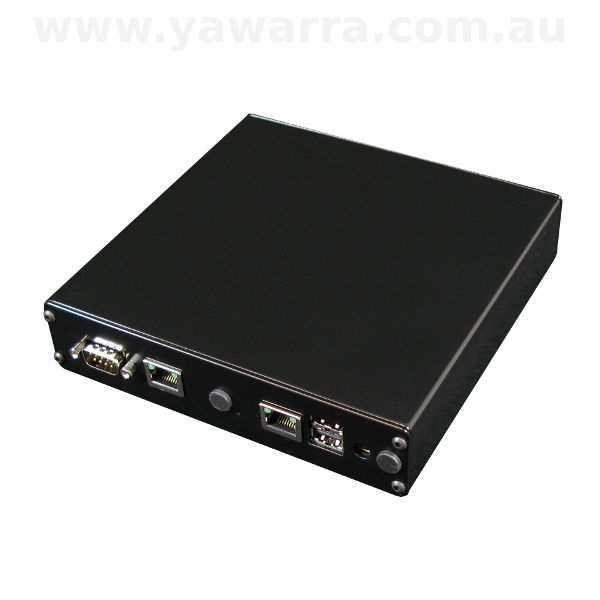

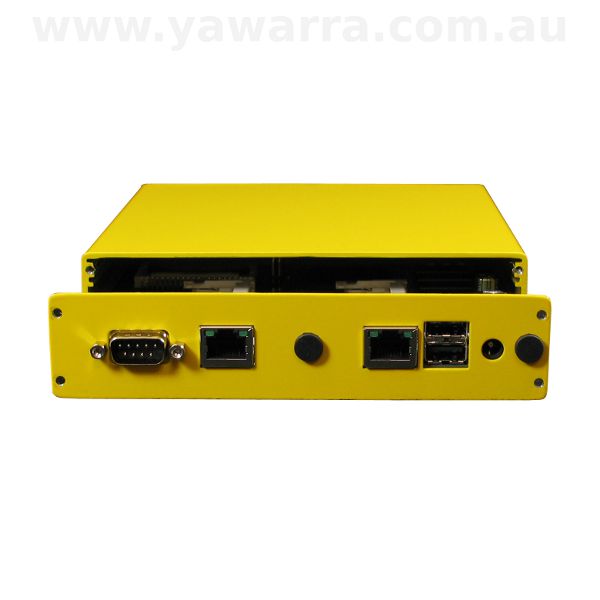

Ethernet, serial and USB to suit ALIX 2-2, D cutout to suit SMA pigtail, DC power jack

Manufacturer

PC Engines (board) / Yawarra (case)

Model

ALIX.2D-2

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
