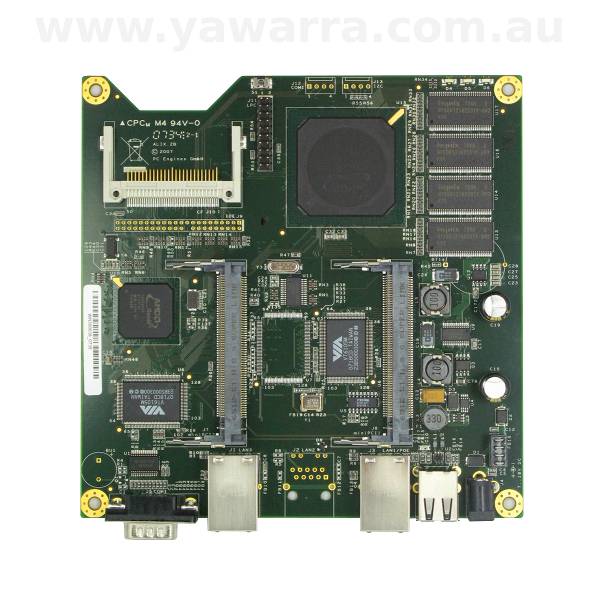

ALIX 2-2 board (2E/2M, 500MHz / 256MB)

Sold out

By special order

Availability

Information

Product Code
Category
Includes
Notes
  • In order to comply with Australian emissions regulations you will need to enclose this board in a metal case.

Designed for embedded use, the ALIX 2-2 board is perfect for specialist projects requiring a small, low power usage, reliable single board computer (SBC). Capable of running a variety of software, it’s the ideal platform on which to base your project.

Along with a 500MHz processor and 256MB of RAM, this board includes two USB 2.0 ports.

The ALIX 2-2 board is ready for you to add your choice of case, storage options, power supply and expansion cards.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM

Storage

Compact Flash card or Microdrive

Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant). Uses about 3 to 5W at 12V DC (excluding miniPCI cards)

Connectivity

2 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 2 miniPCI slots (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports

Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface (requires soldering)

Size

153W x 160L x21H (mm)

Weight

156g

Manufacturer

PC Engines

Model

ALIX.2D-2

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);
