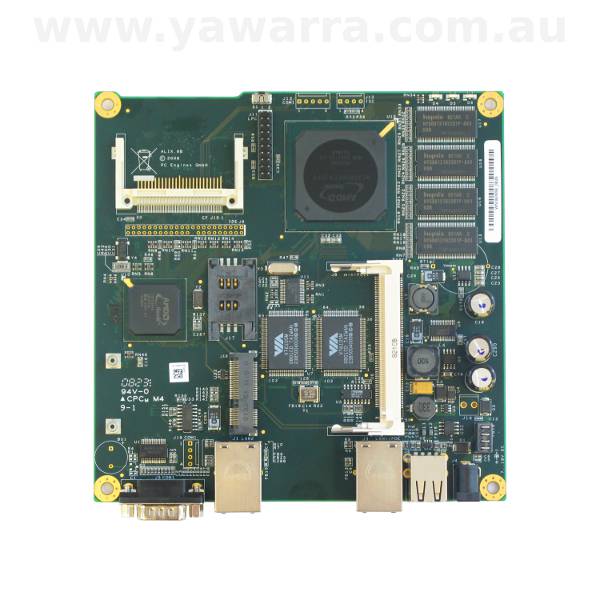

ALIX 6-2 board (2E/1M/1ME, 500MHz / 256MB)

Price

All prices are in AUD and include GST.

Options

Base price: $265.00

Limited stock

Availability

Information

Product Code
Category
Includes
Notes
  • In order to comply with Australian emissions regulations you will need to enclose this board in a metal case

Designed for embedded use, the ALIX 6-2 board is perfect for specialist projects requiring a small, low power usage, reliable single board computer (SBC). Capable of running a variety of software, it’s the ideal platform on which to base your project.

This board includes two ethernet ports, 1 miniPCI slot and 1 miniPCI Express slot, ideal for 3G wireless expansion cards. Also onboard is 1 active SIM card slot and two USB 2.0 ports.

Note: This is the single SIM card slot version of the ALIX 6-2 board. Only the SIM card slot on the top of the ALIX 6-2 board is active at this stage. The SIM card slot on the underside of the board is expected to be active in a later revision of the board.

The ALIX 6-2 board is ready for you to add your choice of case (fits our ALIX 2-2 bookshelf case and our rackmount cases), storage options, power supply and expansion cards.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM

Storage

Compact Flash card or Microdrive

Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant). Uses about 3 to 5W at 12V DC (excluding miniPCI cards)

Connectivity

2 ethernet channels (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot, 1 miniPCI Express slot (cards not included, nextG compatible), 1 serial (RS232) port (console), 2 USB 2.0 ports, 2 SIM card slots (only upper slot is active at this stage)

Interface

Three front panel LEDs, one push-button switch, can be controlled through CPU GPIO pins; 44pin IDE interface (requires soldering)

Size

153W x 160L x21H (mm)

Weight

160g

Manufacturer

PC Engines

Model

ALIX.6F-2

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);
