Rackmount ALIX 1

Sold out

Discontinued

Availability

Information

Product Code
Category
Includes
Notes
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order
  • If you select the A400P VoIP card in the PCI slot, you will also need at least one FXO/FXS module

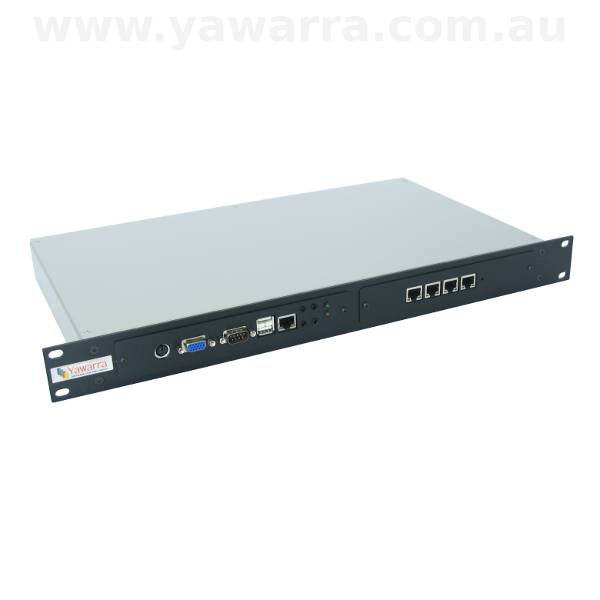

Exclusive to Yawarra, this rack mount server is the ideal way to utilise ALIX 1 boards in a server rack. With a unique modular design the rack mount ALIX 1 allows you to add your choice of PCI cards but maintain a highly polished appliance like feel, so your clients know they’re getting a purpose built solution, not just another beige box.

The combination of small size, add-on flexibility, super low power consumption, polished look and feel, and extra reliable design make the rackmount ALIX 1 the perfect platform to base your solution on. Make an ADSL gateway, a multiport router, load balancer, firewall, or VOIP telephony system.

Run the rackmount ALIX 1 from solid state compact flash or add a 2.5″ hard drive in less than a minute using our cleverly designed mounting board, for storage of voicemail, logs or whatever you need to store! An internal power supply is included, with a standard IEC power connector ideal for hosting environments.

The blank PCI slot comes with a cover plate that can be easily replaced in future with a mounting kit to accommodate a PCI expansion card.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM

Storage

Compact Flash card or Microdrive, and/or 2.5" HDD

Power

100-240V AC, 47-63MHz internal switch mode power supply, max 30W; IEC connector, 1.5 A fuse, 12A illuminated switch, 2m IEC cable (Australian plug); real-time clock (RTC) battery

Connectivity

1 ethernet channel (10/100 Via VT6105M, supports 802.1 VLAN tagging), 1 miniPCI slot, 1 PCI slot, 2 serial (RS232) ports (console/on-board), 1 VGA port, keyboard and mouse ports, audio out and microphone ports, 2.5" IDE connector, 4 USB (2 ports/2 headers), LPT header

Size

250mm deep x 1RU high (44mm) x 19" rack-mountable (483mm wide)

Finish

Black anodised aluminium face, clear anodised body, laser etched port labels

Board slots

1 kit to suit ALIX 1 board and 1 kit to suit PCI expansion card

Model

ALIX.1D

Manufacturer

PC Engines (board) / Yawarra (case)

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
