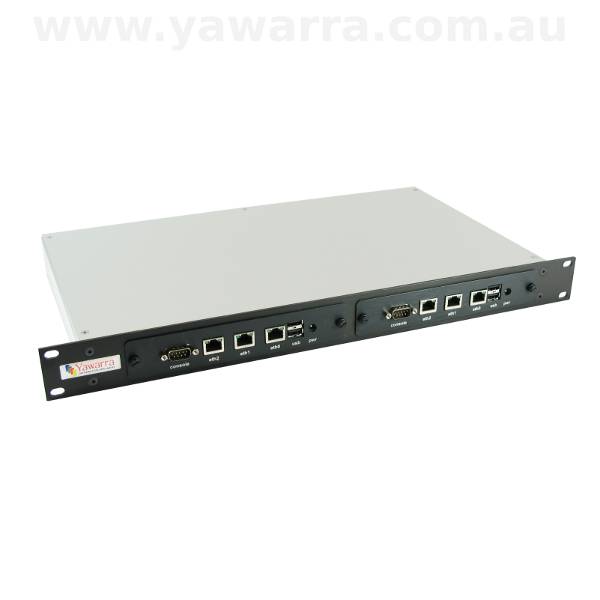

Dual rack mount APU 1


All prices are in AUD and include GST.


Base price: $850.00

In stock



Product Code
Dual rackmount APU 1 (internal power)
  • To have an operating system installed, you will need to include an appropriately sized SD card in your order

With a dual-core 1GHz processor and 4GB of RAM, plus a ton of features packed into the tiniest of spaces, the APU really is the most impressive professional-grade embedded fanless server ever.

With heaps of storage options (including support for a hard drive), 3 Gigabit ethernet ports, and built-in 3G/4G support, the sky really is the limit.

Here’s what you can do with an APU 1 server:

  • Manage all of your server tasks with ease – including firewalling, VPN routing, internet gateway or application serving – thanks to a powerful 1.0GHz dual-core AMD processor and up to 4GB of RAM
  • Significantly reduce electricity consumption with an energy-efficient server that uses less than 12W per board
  • Install your server in harsh environments, thanks to its robust design that ensures it can cope with industrial and remote locations
  • Have the freedom to design your server your way, with the capacity to run many different flavours of Linux, and your choice of rackmount or standalone enclosures
  • Connect your server to the world easily with three Gigabit ethernet ports per board, plus a serial port, 2 USB ports and a SIM card slot
  • Build the perfect redundant high-availability server in a single rack unit, with space for two APU boards in one 19″ 1RU rackmount enclosure

The APU 1 is ideal for you if:

  • You need a business-grade server with the performance to handle more than just basic network tasks
  • Your application really needs access to at least 2GB of RAM and preferably 4GB
  • You need something that takes up as little space as possible
  • You really need Gigabit ethernet
  • You only need up to three ethernet ports, and don’t want or need any more
  • You want redundancy in your internet connections
  • You want to store logs, use caching or other write-intensive applications, so you need a hard drive or solid state drive
  • You want to build an off-the-shelf super-sturdy network appliance for your clients

Get all the features you need in one single, small embedded computer with the awesomely feature-rich and fanless APU 1.

And this is what it takes to build one of these beauties!


AMD G-T40E 64-bit dual core 1.0GHz CPU, 4GB DDR3-1066 64-bit RAM (soldered on-board)


CoreBoot open source system BIOS with support for iPXE and USB booting


Linux, BSD


3 Gigabit ethernet channels (Realtek RTL8111E)


1 DB9 serial port (console), 2 x USB 2.0 ports, 2 x USB 2.0 headers on board


2 miniPCI express (one with SIM socket for 3G modem)


Internal SD card, mSATA SSD, SATA HDD or SSD, external USB storage device


Three front panel LEDs; one push-button switch, can be controlled through CPU GPIO pins; GPIO header; real-time clock (RTC) battery; buzzer; LPC bus; I2C bus; COM2 (3.3V RXD/TXD)


12V DC external power supply (2.5mm internal, centre positive)

Power consumption

6 – 12W (depends on CPU load, excludes miniPCIe cards and peripherals)

Thermal features

Conductive cooling from the CPU and south bridge to case using an aluminium heat spreader

Case style

250mm deep aluminium rack mount case; black anodised aluminium face, clear anodised body, laser etched port labels

Board slots

1 or 2 board mounting kits to suit APU 1 boards


250mm deep x 1RU high (44mm) x 19″ rack-mountable (483mm wide)


2kg (approx)




PC Engines (board) / Yawarra (case)


C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (
