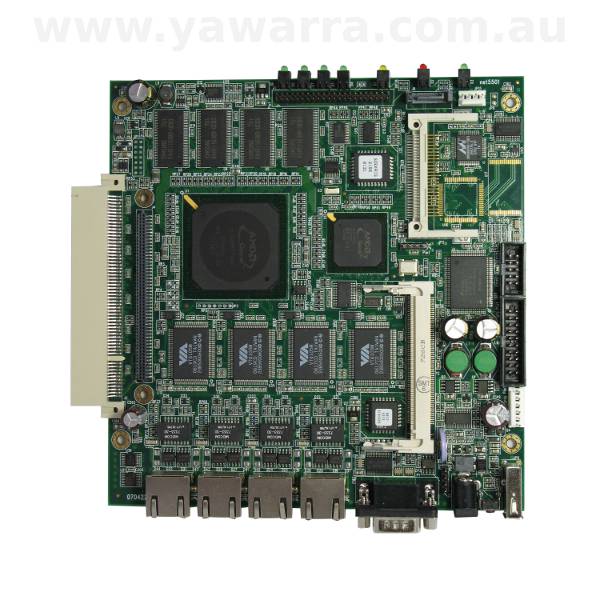

net5501 board (500MHz/512MB)

Sold out

Discontinued

Availability

Information

Product Code
Category
Includes
Notes
  • In order to comply with Australian emissions regulations you will need to enclose this board in a metal case.

Note: This product has been discontinued. Please check out the net6501 and the APU2 as alternatives to the net5501.

Compact and silent, the net5501 uses very little power, has no moving parts and is ultra-reliable, making it ideal for use as a dedicated network appliance. With four ethernet ports, a 500MHz CPU and 512MB RAM, the net5501 is ideal for use as a as a firewall, VPN Router, internet gateway or VoIP PBX.

With the addition of a 2.5″ laptop hard drive, a miniPCI or PCI expansion card, the net5501 has the capacity to serve in a wide variety of applications.

The net5501 board is ready for you to add your choice of case, storage options, power supply and expansion cards.

Performance

500 Mhz AMD Geode LX 800 single chip processor with CS5536 companion chip, 512MB RAM

Storage

Compact Flash card or Microdrive, and/or 2.5" HDD

Power

6-25V DC external power supply, max 20W; option for 5V supply using internal connector

Interface

Seven front panel LEDs (power, disk, error, network x4), 12 bit general purpose I/O, 20 pins header, real-time clock (RTC)

Connectivity

4 ethernet ports (10/100 Mbit, supports 802.1 VLAN tagging), 1 miniPCI slot, 1 PCI slot, 2 serial (RS232) ports, USB 2.0, 2.5" IDE and SATA connector

Size

160W x 165L (mm)

Weight

205g

Manufacturer

Soekris Engineering

Model

net5501-70

Compliance

C-tick labelled for use in Australia; RoHS-5 compliant;
