uSVR micro server


All prices are in AUD and include GST.


Base price: $3,450.00

By special order



Product Code

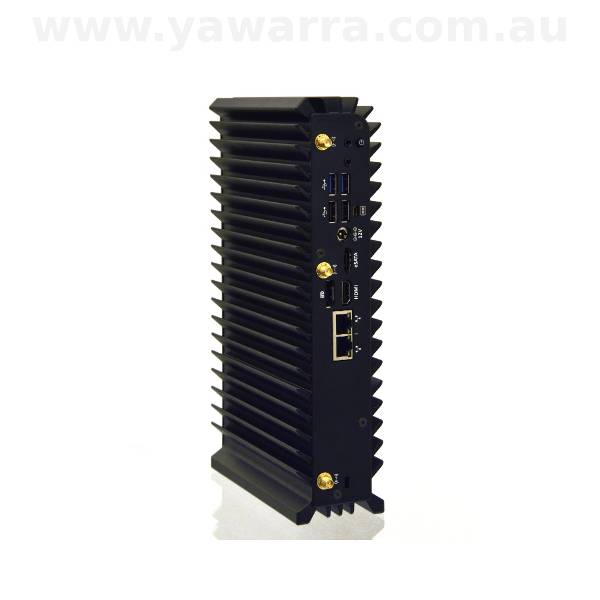

uSVR micro server rear view

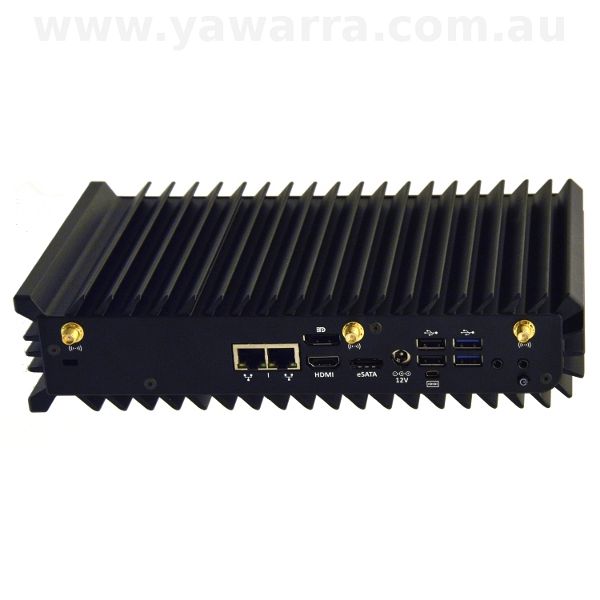

uSVR micro server rear horizontal

Create a whomping fast server in a teeny tiny space

Build a server that can do everything you want (and more), while saving space, energy and time, with the compact and fanless uSVR micro server.

Here’s what you can do with a uSVR server:

  • Perform all of your network and application tasks without even breaking a sweat thanks to a powerful turbo-boosted dual-core 2.5GHz Intel processor and up to 16GB of RAM
  • Significantly reduce electricity consumption with an energy-efficient server that uses from 8W to 35W
  • Save space in your server cabinet or rack with a slimline server that’s smaller than a ream of A4 paper
  • Keep your server room or cabinet cool and quiet with a completely fanless server that also has excellent heat dissipation
  • Spend less time on maintenance, with a high-quality and ultra-reliable server that is built to last
  • Install your server in extreme environments, thanks to its robust design that ensures it can cope with industrial and remote locations
  • Connect yourself to the world with dual Gigabit ethernet, wireless ethernet, Bluetooth and 4 USB ports

The uSVR is ideal for you if:

  • You’re looking for a server with the best performance possible in the smallest space possible
  • You’re need as much RAM as possible e.g. for virtualisation
  • You need support for as many hard drives as possible e.g. to create a high-end file server
  • You’re willing to pay for the best features and performance possible
  • You don’t need more than 2 ethernet ports
  • You want the option to replace or upgrade the RAM later on
  • You want a server with USB 3.0 ports
  • You want a server than can do high-resolution graphic display
  • You need to run Windows
  • You’re crazy about the ribbed case

The uSVR is easily the most powerful micro server ever.


Intel Core i7-3555LE 64 bit dual core 2.5GHz, Turbo Boost up to 3.2GHz, 25W TDP, Intel vPro Technology; HD Graphics 4000; up to 16GB DDR3 ECC RAM (64-bit, 2x SO-DIMM sockets)


1x mSATA hard drives or solid state drives (SSDs); 4x 2.5″ SATA hard drives or solid state drives (SSDs); eSATA port; RAID 0,1,5,10,JBOD


2x Gigabit Ethernet ports, RJ-45 connectors; Wireless 802.11bgn (150Mbit/s), Bluetooth 3.0


2x USB 3.0 ports; 2x USB 2.0 ports; 1 x serial port (ultra-mini serial connector)


1 full mini-PCI Express used for mSATA drive; 1 half-size mini-PCI Express used for wireless module; Proprietary FACE Module interface (custom orders only)


Linux, Windows Server 2012


Two configurable display interfaces support dual-head operation: HDMI 1.4a, up to 1920 x 1200 @ 60 Hz, HDMI connector; DisplayPort up to 2560 x 1600 at 60Hz, dual mode support, DisplayPort connector; DirectX 11, OpenGL 3.0, OpenCL 1.1, 1080p Blu-Ray playback support


Stereo line-out and stereo line-in, 7.1 channel S/PDIF


Power LED, Disk LEDs x4


9.5-15V DC external power supply, with secured lock-in plug

Power consumption

8W – 35W (depends on configuration and load)

Operating temperature

0 – 50°C


Intel AMT 8.x with KVM, IDE-R and SOL support


60W x 160D x 260H (mm)



Case style

100% aluminium ribbed enclosure; heat dissipation through the enclosure


uSVR (MicroSVR)




C-tick labelled for use in Australia; RoHS-5 compliant;
