CF to IDE adapter, FDD power (direct straight)

Price

$23.00

All prices are in AUD and include GST.
In stock

Availability

Information

Product Code
Category
Includes

This adapter is especially useful when you don’t need (or want) ready access to the CF card, and is ideal when space is limited.

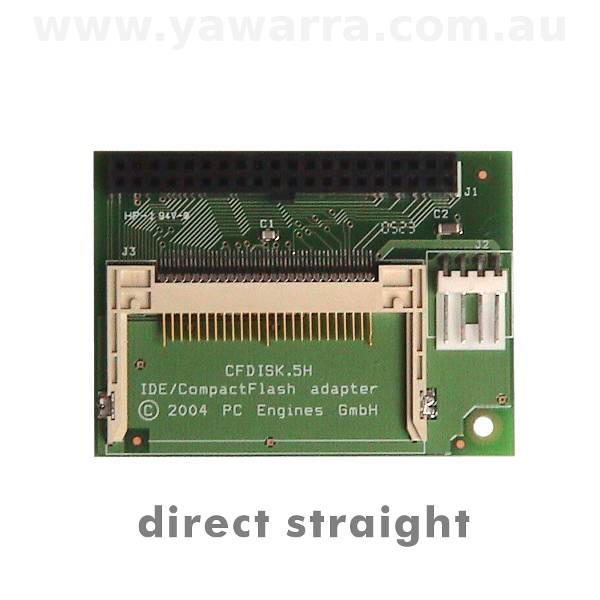

With this adapter you can connect a Compact Flash (CF) card to a normal 40 pin IDE interface in your PC.

The CF device will appear as a normal disk drive to your operating system.

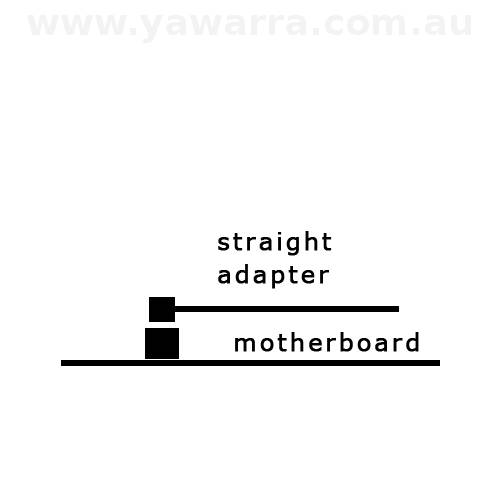

The adapter plugs directly onto the motherboard, saving you space, and sits parallel to the system board.

Power is taken from a normal floppy drive power connector.

Connectors

40 pin IDE female, for direct straight connection to motherboard (adapter sits parallel to system board)

Power

Floppy disk drive (FDD)

CF slot

Type I/II

Size

62W x 12D x 61 from IDE slot to end of CF card when inserted

Model

CFDISK.5HS

Manufacturer

PC Engines
