ALIX 3

Sold out

Discontinued

Availability

Information

Product Code
Category
Includes
Notes
  • To have an operating system installed, you will need to include an appropriately sized Compact Flash card in your order

Compact and silent, the ALIX 3 uses very little power, has no moving parts and is ultra-reliable, making it ideal for use as a dedicated network appliance.

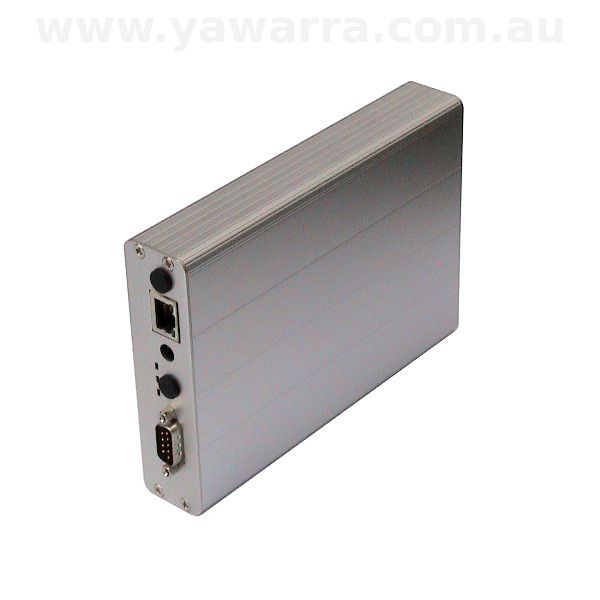

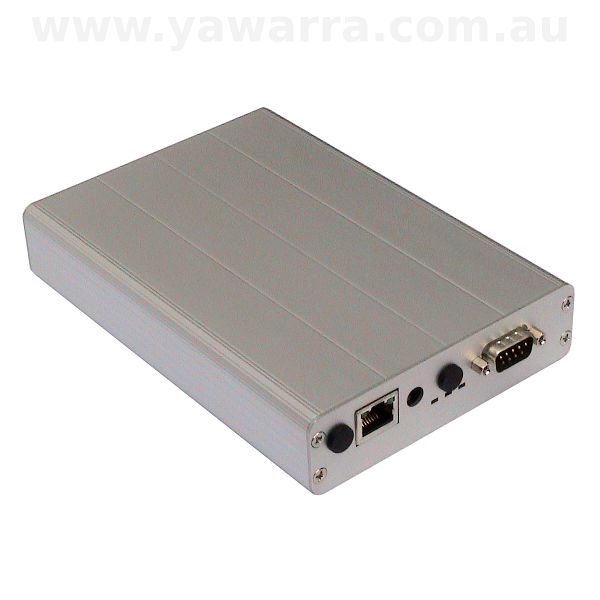

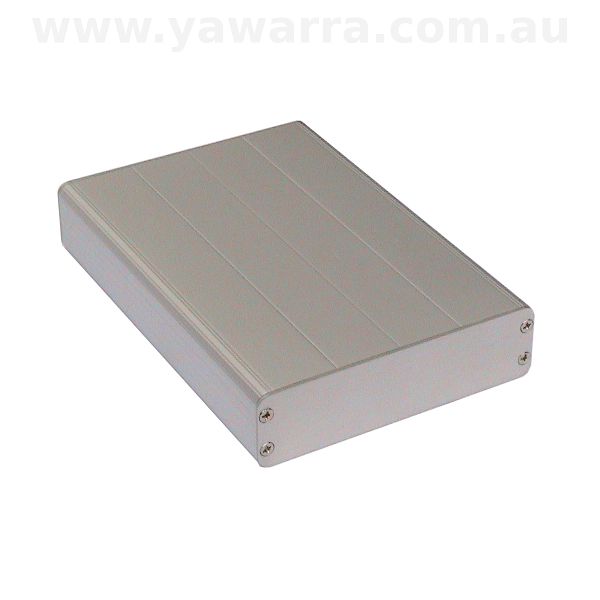

With a stylish silver case the ALIX 3 looks very smart and is equally at home on public display or tucked away in a corner.

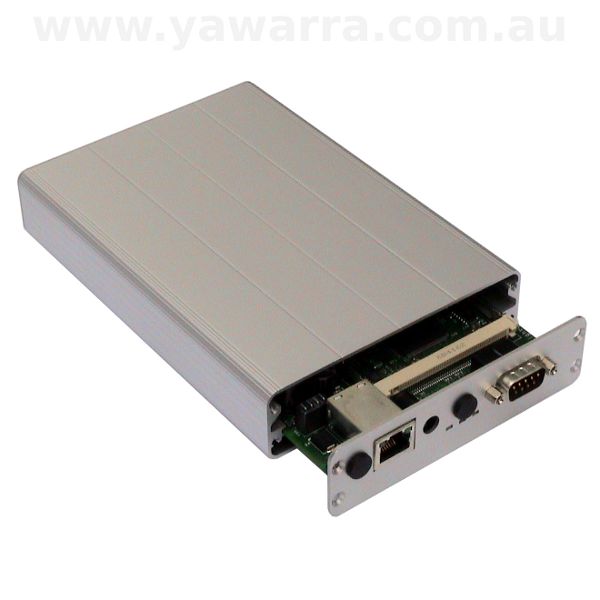

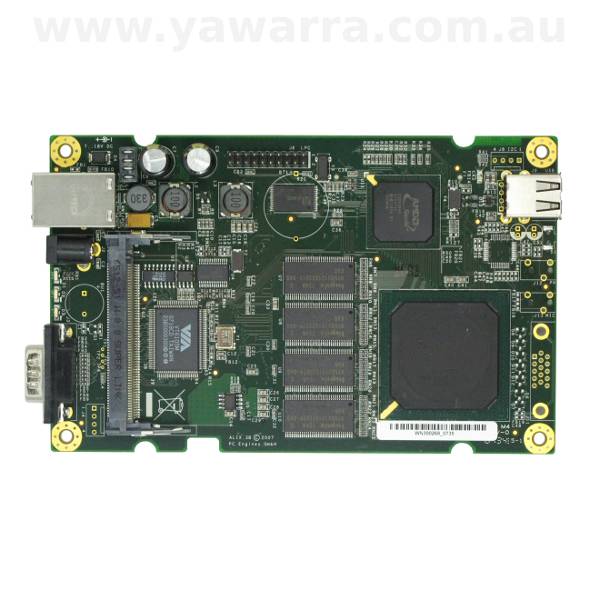

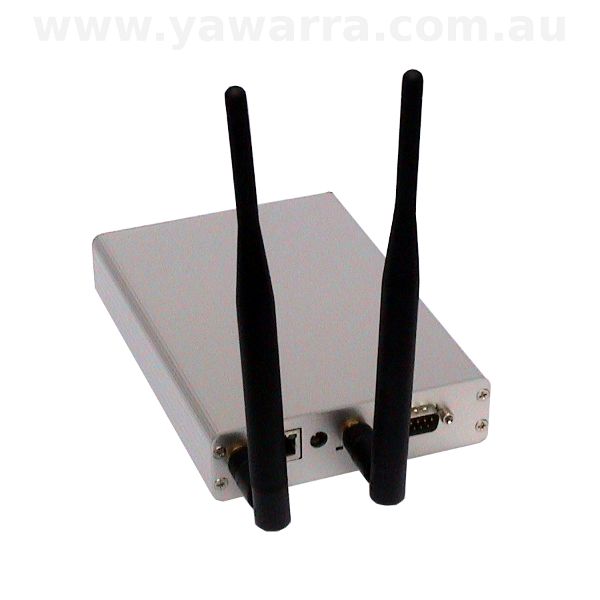

The ALIX 3 includes a board and case, ready for you to add your choice of Compact Flash card, operating system, expansion cards, pigtails, antennas and power supply.

Performance

500 MHz AMD Geode LX800 CPU, 256 MB RAM

Storage

Compact Flash card or Microdrive

Power

7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant)

Power consumption

Uses about 3 to 5W at 12V DC (excluding miniPCI cards)

Connectivity

1 ethernet channel (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 2 miniPCI slots (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports; VGA board only: 1 VGA port, 2 audio ports (mic/speaker)

Interface

Three front panel LEDs, can be controlled through CPU GPIO pins

Size

110W x 166L x 35H (mm)

Weight

348g

Case colours

Anodised silver

Manufacturer

PC Engines

Model

ALIX.3D-2 / ALIX.3D-3

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);

Note: This product includes software developed by the pfSense® Project for use in the pfSense® software distribution. (http://www.pfsense.org/)
