Intense PC2 Pro

Sold out

By special order

Availability

Information

Product Code
Category
Includes
Notes
  • To have Windows or Linux pre-installed, you need to include a SATA drive or an mSATA drive in your order

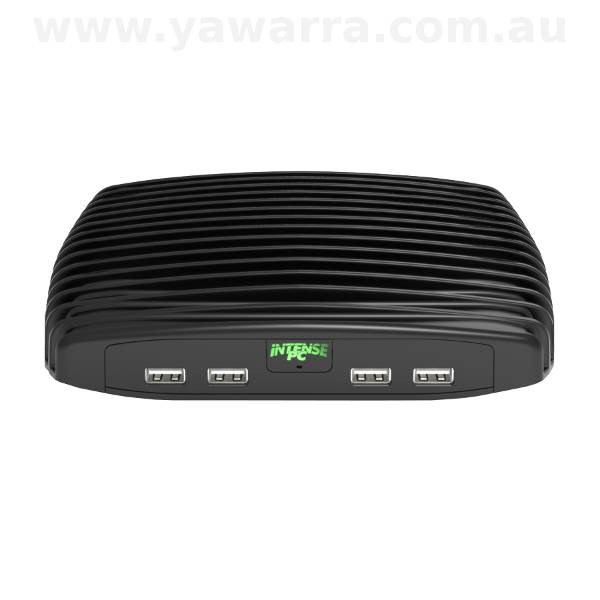

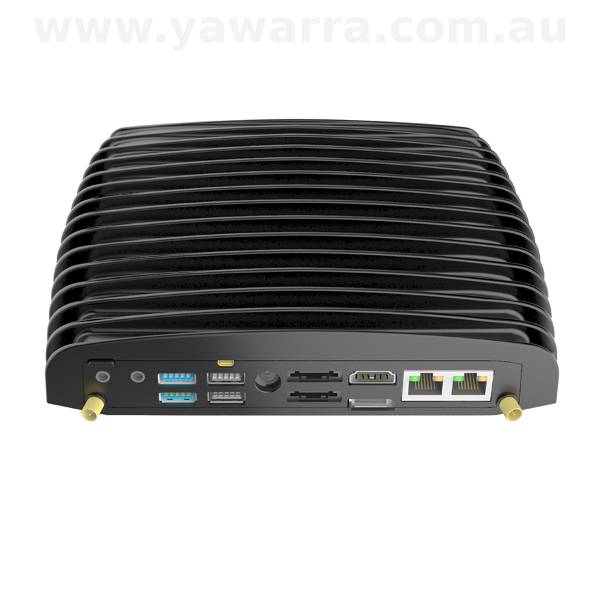

The Intense PC2 is a tiny, fanless, powerful, energy-efficient desktop PC, able to handle any desktop environment.

Developed with a focus on miniaturisation, energy-efficiency and performance, the compact Intense PC2 uses less than 10W when idle, and up to 27W under full load, while providing blazing fast performance with its powerful 2.1GHz dual-core Intel Core i7 CPU.

The Intense PC2 offers an extremely rich interactive experience, with dual-head HDMI display, digital and analogue audio, and up to 16GB of RAM.

This small low-power PC also has remarkable connectivity, with dual gigabit ethernet, wireless ethernet, Bluetooth and up to 6 USB ports, and can run either Windows or Linux.

The Intense PC2 is ideal for high-performance applications such as graphic design, office desktops, classroom computers, point-of-sale (POS) systems and home entertainment and can even function as a specialised router.

The Intense PC2 is easily the most powerful miniature fanless PC ever!

Performance

Intel Core i7-3517UE 64 bit dual core 2.1 GHz 17W TDP CPU (provides up to 2.8 GHz of processing power with Intel® Turbo Boost Technology); Intel HD Graphics 4000 GPU; 4GB to 16GB DDR3-1600 64-bit (two SO-DIMM sockets) pluggable RAM

BIOS

Phoenix BIOS, bootable from HDD, USB thumb drive, USB CDROM, USB hard disk or over network

Software

Linux Mint or Windows 7 Professional

Graphics

Intel HD Graphics 4000 GPU; HDMI 1.4a, up to 1920 x 1200 @ 60Hz; DisplayPort up to 2560 x 1200 @ 60Hz, dual-mode support;

Audio

7.1 channel S/PDIF (electrical through 3.5mm jack) and analog 2.0 audio; stereo line-out, stereo line-in

Network

2 x 1000 BaseT Gigabit Ethernet ports, 802.11bgn WLAN (150Mbit/s), 2 antennas, RJ-45 connector; Bluetooth 4.0

Connectivity

2 x USB 3.0 high speed ports (5 Gbit/s); 6 x USB 2.0 high speed ports (480 Mbits/s) (2 at rear, 4 at front via FACE extension module); ultra mini serial connector (RS232)

Expansion

Mini PCIe (PCI express) socket, half size (used for wireless module); Mini PCIe (PCI express) socket, full size (mSATA support); Customisable FACE module

Storage

Internal 2.5" SATA hard drive (HDD) or 2.5" solid state drive (SSD), up to 6 Gbit/s; 2 eSATA ports, up to 3 Gbit/s

Power

DC external supply, 10-16V tolerant

Power consumption

10W when idling (Windows 7), and up to 27W under full system load with dual head display

Thermal features

Heat dissipation through the enclosure, plus internal passive heat-spreader and power regulation based on both CPU and case temperature monitoring

Operating temperature

0°C-50°C with HDD, 0°C-70°C with SSD;

Size

190W x 160D x 40H (mm)

Weight

1230g (including hard drive)

Case style

100% aluminium die cast body

Manufacturer

CompuLab

Model

Intense PC Pro Barebone / Linux / Win7

Compliance

C-tick labelled for use in Australia; RoHS compliant (lead-free);
