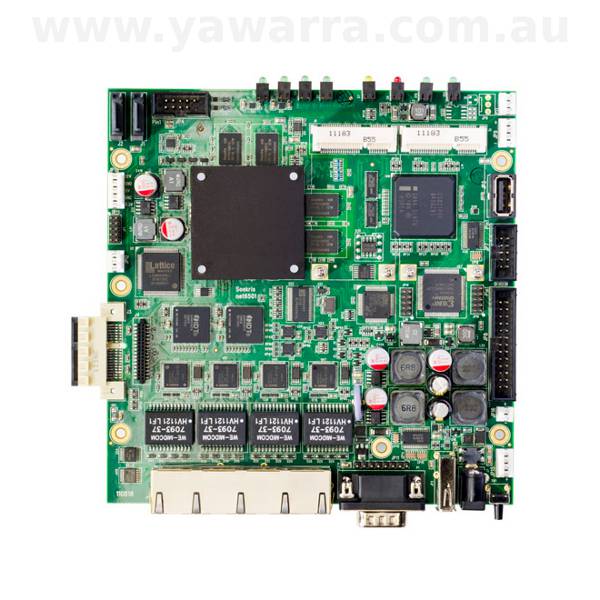

net6501 board (1GHz/1GB)

Price

All prices are in AUD and include GST.

Options

Base price: $830.00

Discontinued

Availability

This product has been discontinued. We apologise for any inconvenience. Please contact us if you have any queries.

Information

Product Code HW-NT65-M-1000
Category
Tags
, , ,
Includes
Board
net6501 board 1GHz 1GB
Notes
  • This board will need to be housed in a suitable metal enclosure, in order to comply with ACMA emissions regulations

Compact and energy-efficient, the net6501 is silent, fanless and built to last.

Designed for use as a firewall, VPN router, internet gateway or application server, the net6501 also has the power and flexibility to function in any capacity as a dedicated network appliance, and is NBN-ready.

The net6501 combines a powerful 1.0GHz Intel ATOM CPU with four Gigabit ethernet ports and 1GB of RAM.

You can add mSATA, 2.5″ SATA and USB flash drives for storage, plus MiniPCI-Express cards and/or low-power standard PCI-Express cards, for even greater functionality.

The net6501 board is ready for you to add your choice of case, storage options, power supply and expansion cards.

Performance

1 GHz Intel Atom E6xx series processor with EG20T companion chip and 1024 Mbyte DDR2-SDRAM, soldered on board
Storage

2x mSATA hard drives or solid state drives (SSDs); 2x 2.5" SATA (3 Gbit) hard drives or solid state drives (SSDs); internal USB drive; 8Mbit BIOS/BOOT Flash
Connectivity

4x Intel 82574IT Gigabit Ethernet ports, Auto-MDIX RJ-45, protected to 700W/40A Surge, supports 802.1 VLAN tagging; 1 external serial port (RS232/DB9), 1 internal 10-pin header
USB

Internal Low Profile USB socket, bootable; USB 2.0 interface, 2x internal, 1x external port, bootable
Expansion

1 full Mini-PCI Express shared with mSATA socket; 1 USB-only Mini-PCI Express shared with mSATA socket; 1x PCI Express slot, right angle
Interface

Power LED, Disk LED, Error LED, Status LED, Network LEDs; 16 bit general purpose I/O; 24 pins header, connected to FPGA; real-time clock (RTC)
Power

6-25V DC external power supply, max 30W, protected with TVS; option for 5V supply using internal connector
Power consumption

8 – 10W (without hard drive)
Operating temperature

0 – 60°C
Monitoring

Temperature and voltage monitor; fan controller (optional fan not included); light management microcontroller; NiMH battery backup connector with charge and monitoring
Size

160W x 161D x 18H (mm)
Weight

205g
Manufacturer

Soekris Engineering
Model

net6501-50
Compliance

C-tick labelled for use in Australia; RoHS-5 compliant;
