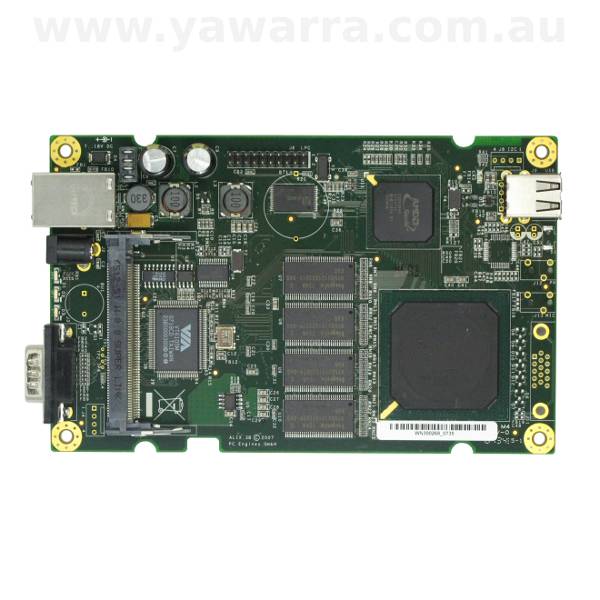

Designed for embedded use, the ALIX 3 board is perfect for specialist projects requiring a small, low power usage, reliable single board computer (SBC). Capable of running a variety of software, it’s the ideal platform on which to base your project.
Along with a 500MHz processor and 256MB of memory, this board includes two USB 2.0 ports.

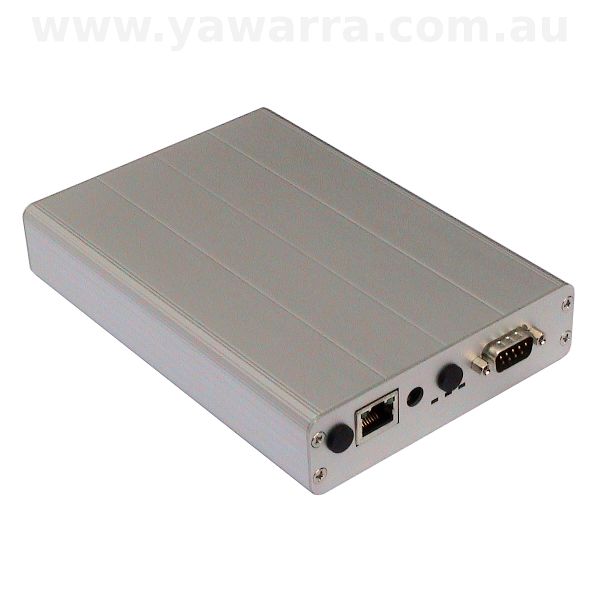

The ALIX 3 board is ready for you to add your choice of case, storage options, power supply and expansion cards.
| Performance | 500 MHz AMD Geode LX800 CPU, 256 MB RAM |
|---|---|
| Storage | Compact Flash card or Microdrive |
| Power | 7-18V DC external power supply; option for passive Power over Ethernet (not 802.3af compliant). Uses about 3 to 5W at 12V DC (excluding miniPCI cards) |
| Connectivity | 1 ethernet channel (10/100 VIA VT6105M, supports 802.1 VLAN tagging), 2 miniPCI slots (cards not included), 1 serial (RS232) port (console), 2 USB 2.0 ports |
| Interface | Three front panel LEDs, can be controlled through CPU GPIO pins |
| Size | 100W x 167L x25H (mm) |
| Weight | 122g |
| Manufacturer | PC Engines |
| Model | ALIX.3C-2 |
| Compliance | C-tick labelled for use in Australia; RoHS compliant (lead-free); |
